Wohler VIS 200 or VIS 250 1-inch (2.5cm) Inspection Camera Head: with L 200 Locator Receiver
Wohler VIS200 Service Camera with Locator Features:
- Waterproof, light-sensitive camera head – 1″ diameter for easy bending
- Electronic distance measurement displayed on monitor
- Fully equipped mobile solution in a robust, plastic case
- Does not require main power supply
- Bright TFT color monitor for razor-sharp images
- Tiltable and removable monitor with 6' cable
- Integrated video output for documentation purposes
- Battery operating time: 120 minutes
Wohler VIS250 Service Camera with Locator includes above features and below:
- Store video footage on a 2 GB SD card (Wohler VIS 250)
- Digital Indication of the camera head
- Electronic metering displayed on monitor
- Battery operating time: 2 x 120 min. with 2 rechargeable batteries (optional)
- Data exchange via mini USB cable (Wohler VIS 250)
DESCRIPTION
WOHLER VIS 200 VISUAL INSPECTION SYSTEM
Locate damage and inspect:
- Waste water pipes of 1 1/2″ diameter and larger
- Ventilation lines of 1 1/2″ diameter and larger
- Inspect hollow spaces, e.g. in front-wall installations
- Flue gas lines up to approx. 6″ diameter
Wohler‘s innovative VIS 200 Visual Inspection System enables you to easily view damage in pipes of 1 1/2″ dia and larger – no power outlet required. Compact by design and powered by a rechargeable battery, this complete camera-system is contained in a robust plastic case. The camera head features a powerful, integrated light to allow you to clearly view damage in waste water pipes (at least 1 1/2″ dia) and inspect downpipes as well as flue gas lines. Absolutely essential for locating obstructions or damage quickly.
Flues, ventilation lines, waste water pipes | ||
Wohler VIS | 200 | 250 |
Features | ||
Color camera head 1″ dia | • | • |
Digital distance counter | • | • |
Photo and video record | • | |
Menu | • | |
Video settings | • | |
Transmitter/ Sonde | • | • |
Angle and gravity indicator | • |
Wohler VIS 250 |
Wohler VIS 350 |
Wohler VIS 400 |
|
---|---|---|---|
Dry and wet environments | |||
5″ dia or larger | ● | ● | |
3″ dia to 5″ dia | ● | ● | ● |
1.5″ dia to 3″ dia | ● | ● | |
Features | |||
Video Memory (4 GB SD-Card) | ● | ● | ● |
Digital Meter Counter | ● | ● | ● |
Video Output (RCA) | ● | ● | ● |
Built-in sonde for location | ● | ● | ● |
Audio recording | ● | ||
Monitor Display | 7″ TFT | 7″ TFT | 7″ TFT |
Camera Head: Pan- and tilt | ● | ● |

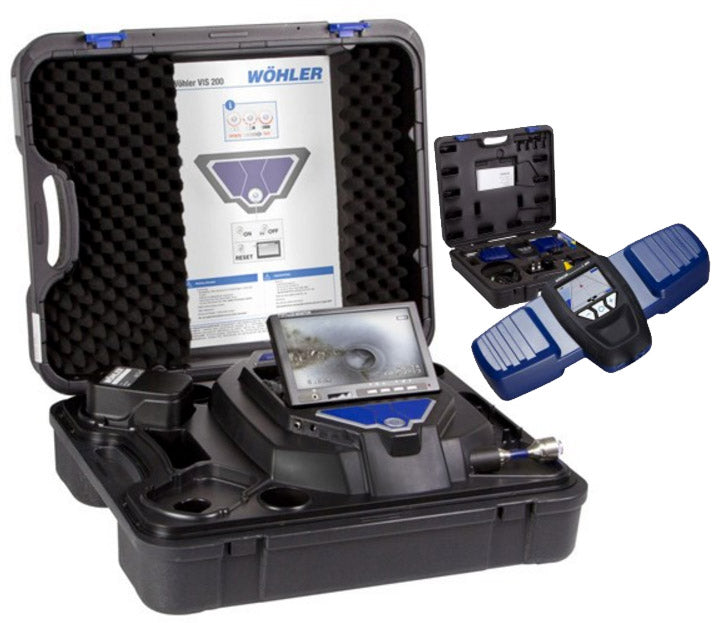

WHAT’S IN THE BOX
- Wohler VIS 200 NTSC Visual Inspection System with digital meter counter
- Miniature color camera head 1″ dia, V2 NTSC
- 7″ TFT color monitor
- 6 ft connection cable (removable monitor)
- 100 ft push rod 0.24″ diameter
- 1 anti-slide mat
- 1 NiMH battery with charger
- 1 guidance sleeve for mini camera head
- 1 guidance ball for flex part of camera push rod
- Wohler L 200 Locator (Receiver)
- Heavy duty carrying case
