WOHLER VIS 700 HD / 700 PLUS HD Inspection Camera

by WOHLER
Save 10%
$ 8,900.00
$ 8,010.00

The Wohler VIS 700 inspection camera offers exactly what professionals have been waiting for: razor sharp high definition images, a focus function for precise inspection, and now wireless locating. The Wohler VIS 700 is the ideal inspection camera for waste water pipes, flue gas and ventilation lines as well as NDT and plumbing applications.

  • High Definition image quality
  • 1.5" HD detachable waterproof pan- and tilt color camera head (IP 67)
  • Optional 1" HD detachable waterproof miniature color camera head (IP 68)
  • 7" HD color touchscreen with adjustable focus via joystick / touch screen
  • Built-in radio transmitter with adjustable locator frequency: 512 Hz / 8.9 kHz / 9.2
  • Transmission of Live Images
  • Adjustable Focus
  • Position and level display for orientation during inspections
  • On screen keyboard for typing comments / descriptions to photos
  • Convenient option for remote control of the camera head and video streaming via free Wohler App
  • Individual control of Sharpness
  • Video and Photo Function
  • Locate Camera head
  • Home Function
  • Electronic Distance Counter
  • 240 Minutes of Operating Time
  • Comment & Voice Notes
  • Easy to Clean

Application

Analyze damage and inspect:

  • House connection pipes up to 8"
  • NDT applications
  • Flue gas systems of 2.5" and larger
  • Ventilation system ductwork
  • False ceilings, hollow spaces, shafts
  • Industrial machines / plant
  • Waste water lines of 2.5" and larger
  • Inspection of smaller pipes with optional miniature
  • camera head (IP 68)

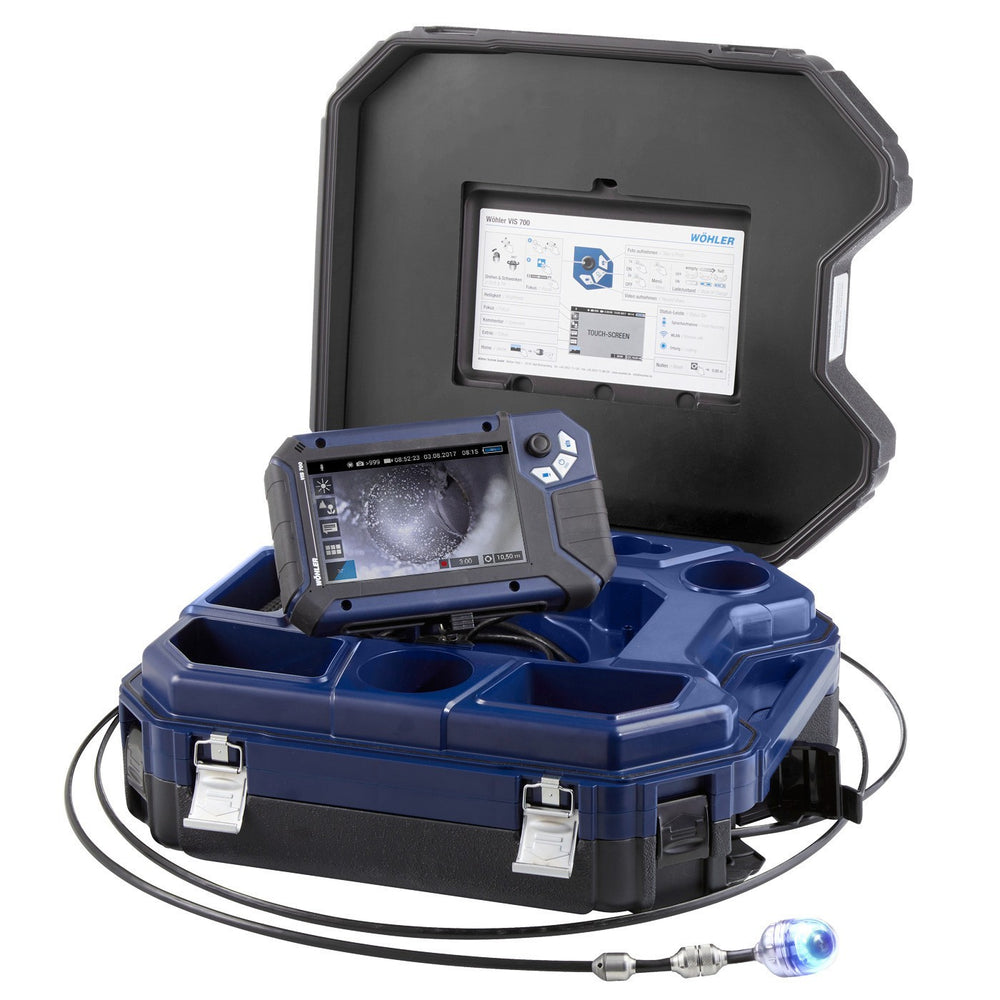

700 HD - ADDITIONAL INFORMATION

with motor-focus for visual inspections of drain pipes, flue gas lines and ventilation ducts.

Scope of Delivery:

  • Wohler VIS 700 Monitor with 7" HD TFT-broad band color monitor incl. 5' connection cable
  • Glare shield
  • Li-Ion battery
  • Wohler HD pan- and tiltable camera head 1.5", detachable
  • SD Card 32 GB
  • Camera rod 0.34" x 0.22" – 100' long
  • 3 replacement plastic domes
  • Anti-slide mat
  • USB charger with USB-C cable
  • Plastic case

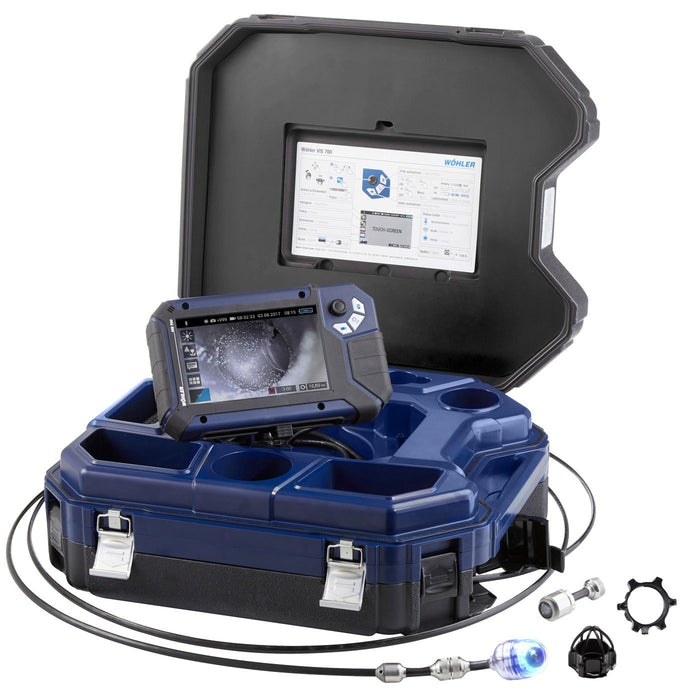

700 PLUS HD - ADDITIONAL INFORMATION

with motor-focus for visual inspections of drain and exhaust pipes and ventilation ducts

Scope of Delivery:

  • Wohler VIS 700 Monitor with 7" HD TFT-broad band color monitor incl. 5' connection cable
  • Glare shield
  • Li-Ion battery
  • Wohler HD miniature camera head 1", detachable
  • Wohler HD pan- and tiltable camera head 1.5", detachable
  • SD Card 32 GB
  • Camera rod 0.34" x 0.22" – 100' long
  • 3 replacement plastic domes
  • Anti-slide mat
  • USB charger with USB-C cable
    Plastic case
  • Guidance sleeve
  • Guidance sleeve with protection cage
